Ladder Racks for Utility Bodies, Service Bodies, KUV Bodies, Enclosed Bodies, Bucket Truck and Box Trucks: Enhancing Safety and Efficiency

The handling of heavy extension ladders (usually fiberglass for insulation and non-conductivity) poses a significant ergonomic and safety challenge in the world of service fleet vehicles, particularly those equipped with utility-bodies, service-bodies, KUV bodies, enclosed bodies, and other up-fit configurations by manufacturers like Knapheide, Readings Truck, Altec, CM Truck, Morgan, Supreme, SpaceKap, and others. This is especially true for vehicles with service-body upfits, roof-top equipment, or custom built-bodies, where the total vehicle body height exceeds 95 inches (≈ 2.4 m). The dangers of insufficient ladder racks, the ergonomic and safety implications, and the reasons a hydraulic-assisted drop-down ladder rack solution makes a lot of sense are all covered in detail below.

When hauling and deploying ladders, vehicles with high roof bodies provide a number of challenges.

1. A higher roof with ladder storage equals a larger height disparity

The ladder tray or roof rack is probably significantly higher when roof bars, light-bars, or other equipment are installed because the body height is more than 95 inches (≈ 2.4 m).  Depending on its length, a heavy extension ladder—typically made of fiberglass for electrical work applications—may weigh up to 25–40 kg.  The operator experiences significant strain when carrying it up to the roof or dumping it down from a height of more than 2.5 meters.

2. Conventional ladder racks do not release at ground level, but rather at a mid-height.

A lot of conventional truck ladder racks don’t lower the ladder all the way to the ground. Alternatively, they might raise it to a mid-height of around 40 to 50 inches (~1.0 to 1.3 meters) above the ground. The operator must lift or tilt the ladder downward from the mid-height (or push upward to stow it). This “half-way” position necessitates non-ergonomic lifting, bending, and twisting. The operator must carry the weight of the ladder from the ground to the roof (or from the roof to the ground) by themselves, frequently bending at the waist, twisting their torso, or extending their arms above shoulder height. Such combinations of bending, twisting, and lifting are recognized risk factors for musculoskeletal injuries (arms, shoulders, and back). The task becomes significantly more demanding and dangerous when using fiberglass ladders because of the weight and the necessity to maintain control (to avoid damaging the ladder, truck roof, or vehicle body). Additionally, if the operator is unable to effectively manage the angle, there is a chance that the ladder will come into contact with parts of the vehicle’s body or strike above obstacles. The distance between the ground and the tray may be so great for taller people that a mid-height release still results in a significant physical lift. When a ladder is handled carelessly, it may scrape side panels, mounting brackets, or roof rails, causing damage.

The ladder may swing or fall if the operator loses control, putting onlookers in danger or causing damage. When under time pressure, as is frequently the case during service calls, the operator may assume risky posture or omit stabilization actions. Repetitive difficult lifts cause weariness and injuries over time, which increases downtime and may result in missed work or compensation expenses. Because of the vehicle’s high body height, drivers may be tempted to reach in a dangerous manner rather than using the appropriate tools, such as a step ladder. Fiberglass ladders are frequently used in utility and electrical work because they are non-conductive. They are more costly and require cautious handling to prevent damage (core exposure, cracks). Because of their length and flexibility, they may be heavier, longer (20–28 feet or more), and a little more difficult to load and unload than a typical household ladder. The fiberglass side rails or rungs may sustain damage if dropped or dragged across roof surfaces, reducing the lifespan of the ladder or posing a safety risk. Because of the height, weight, and rigidity of the ladder, operator fatigue develops quickly if manual handling is performed frequently.
Given the aforementioned difficulties, it is evident that the ladder-racking solution on tall service bodies needs to take into account a number of important factors, such as the following:

Deployment at ground level or very close to the ground: The system should enable the ladder to be lowered to the ground or very close to it, requiring little manual manoeuvring on the part of the operator.
Ergonomic lift and tilt assistance: the system should lessen or completely remove the requirement for the user to bend, twist, or raise above shoulder height;
Secure stowage and transportation: To avoid damage or public hazards, the ladders must be securely secured during transit (no lateral or fore-aft movement);
Compatibility with high bodies: The rack must integrate with the equipment of the body manufacturer (e.g., Knapheide, Readings, Morgan, etc.) and respect the vehicle’s overall height, center of gravity, and roof-mount structural points;

Sturdiness and reduced upkeep Equipment must be able to withstand the demands of routine maintenance tasks, such as weather, vibration, and loading-unloading cycles, without requiring frequent repairs;

Operator safety and certification: The system must be certified or crash-tested, taking into account manual handling guidelines, occupational health and safety (OHS) criteria, etc.

The risks listed include increased accident rates, damaged ladders or vehicles, inefficiencies, and higher total cost of ownership when a ladder rack doesn’t match these requirements (for instance, only mid-height drop, no lift assistance, uncomfortable operation). The shortcomings of “normal” racks become evident when service bodies have roof heights significantly higher than the average: In the end, the operator must physically move ladders up and down wide height drops, possibly from a roof height of about 2.6 meters to a release height of around 1.0 meters. The total cost (in terms of time, weariness, and injury risk) is significant over hundreds of cycles annually.
Choosing a ladder rack for a service-body manufactured by companies like Knapheide, Readings Truck, Altec, CM Truck, Morgan, Supreme, SpaceKap, etc., Additional design and compatibility considerations include the fact that many of these bodies are built with crane mounts, service boxes, light bars, or roof-access shelving, which may increase the overall height of the roof or obstruct ladder-rack mounting. To ensure load ratings and roof integrity, the body manufacturer may offer particular mounting locations, structural reinforcements, or customized bracket kits. Using a rack made for typical roof heights could result in structural hazards or void warranties. The ladder rack system must guarantee sufficient clearance. For instance, when the ladder rack is stowed, its top cannot be higher than the maximum vehicle height permitted by law (in Europe, this is often 4.0 m or 4.2 m for specified classes; in the US, there may be state/municipality specific limits). In order to prevent the load or the body itself from becoming unstable due to transport vibration, heavy ladders, road stress, and vehicle movement, the rack must be fastened to the body. The restraint system for fiberglass ladders must be taken into account since vibration can lead to ladder movement and abrasion damage to the side rails if they are not securely fastened. From the operator’s point of view, the ladder-rack deployment shouldn’t impede side access or cause pinch spots if the service body contains side compartments or high shelving. Up-fitter access and body warranty services shouldn’t be hampered by system maintenance. In summary, the ladder rack frequently becomes a bottleneck, especially as roof height increases, even if many up-fit bodies are well-designed for tool storage, compartments, and electrical equipment.

In addition to purchase price, fleet managers should look at lifespan expenses, ladder rack operating time, injury risk, ladder damage, vehicle damage, and downtime.

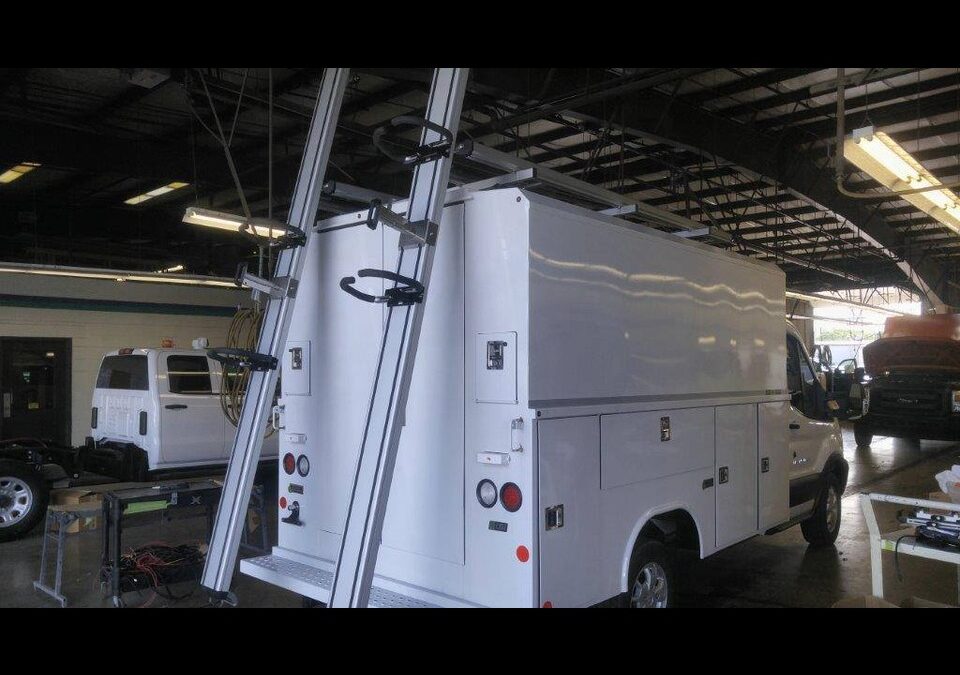

Hydraulic-assisted drop-down ladder racks, such the Gentili G2000 Harrier Ladder Rack and Gentili G2000 Maxi Ladder Rack by Gentili, are an appealing answer to all of the aforementioned problems. Ladder releases are made to minimize operator effort and are “vertically close to the ground (no lifting required).” The Maxi is perfect for fleets that require numerous fiberglass extension ladders because it can support two ladders side by side. Reduced manual lift with release near ground level allows the operator to work at near-ground height, minimizing bending and twisting, without having to raise the ladder from 2.5 m+.

Safety and ergonomics. The danger of strain and injury is reduced by minimizing uncomfortable postures. The operator just controls the interface; the hydraulic system handles the heavy lifting. The ladder is smoothly lowered and raised for vehicle protection, minimizing uncontrollable movement or impact with side panels, roof rails, or other body equipment. The side-by-side arrangement of the dual ladder capacity (in Maxi) allows the operator to deploy one ladder after the other without requiring significant adjustment for service fleets that carry numerous ladders. These racks are made for “any vehicle” with the proper roof bar kits and mounting brackets, including trucks and high-roof vans, and they are compatible with huge bodywork.

Fleet effectiveness Jobs begin earlier, downtime is decreased, and operator fatigue throughout a workday is decreased since ladder deployment is quicker, safer, and less physically taxing. Fleet managers are able to show due diligence in operator safety and load restraint because of crash-tested and approved equipment. The ladder-rack is an essential part of the work system for fleets using service-bodies, utility-bodies, KUV bodies, or enclosed bodies, particularly when the total roof height is more than 95 inches.

There is a risk of operator injury, ladder damage, vehicle body damage, inefficiencies, and increased long-term costs when an inadequate rack requires human lifting from a mid-height (~40–50 inches). These dangers are mitigated by using a drop-down ladder rack with hydraulic assistance, such as the Gentili G2000 Harrier or Maxi. It minimizes ergonomic strain, guarantees safe transportation, permits ground-level (or near-ground) access, and allows high-body configurations. The return on investment in terms of fewer injuries, increased operator productivity, decreased ladder/vehicle damage, and fleet uptime makes it a wise choice, even though the initial cost may be more than that of a standard rack.
